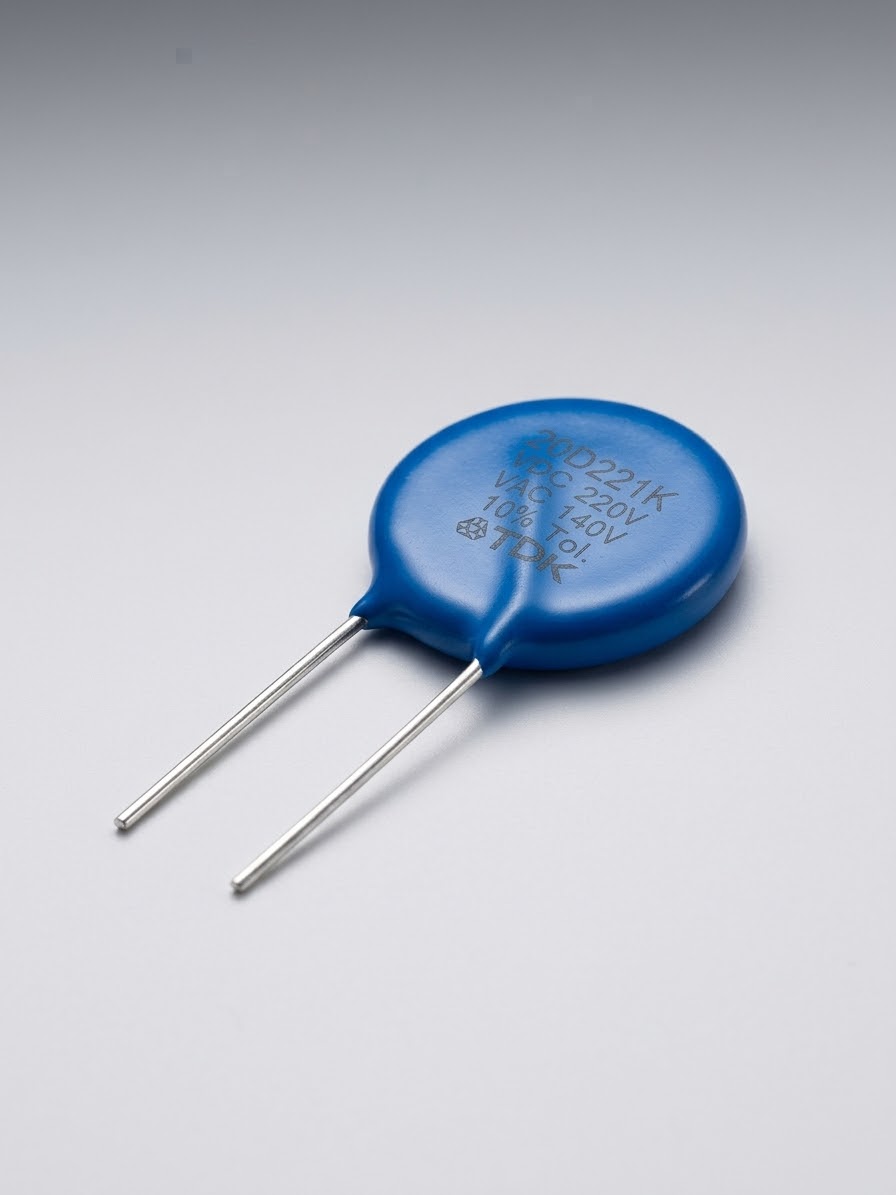

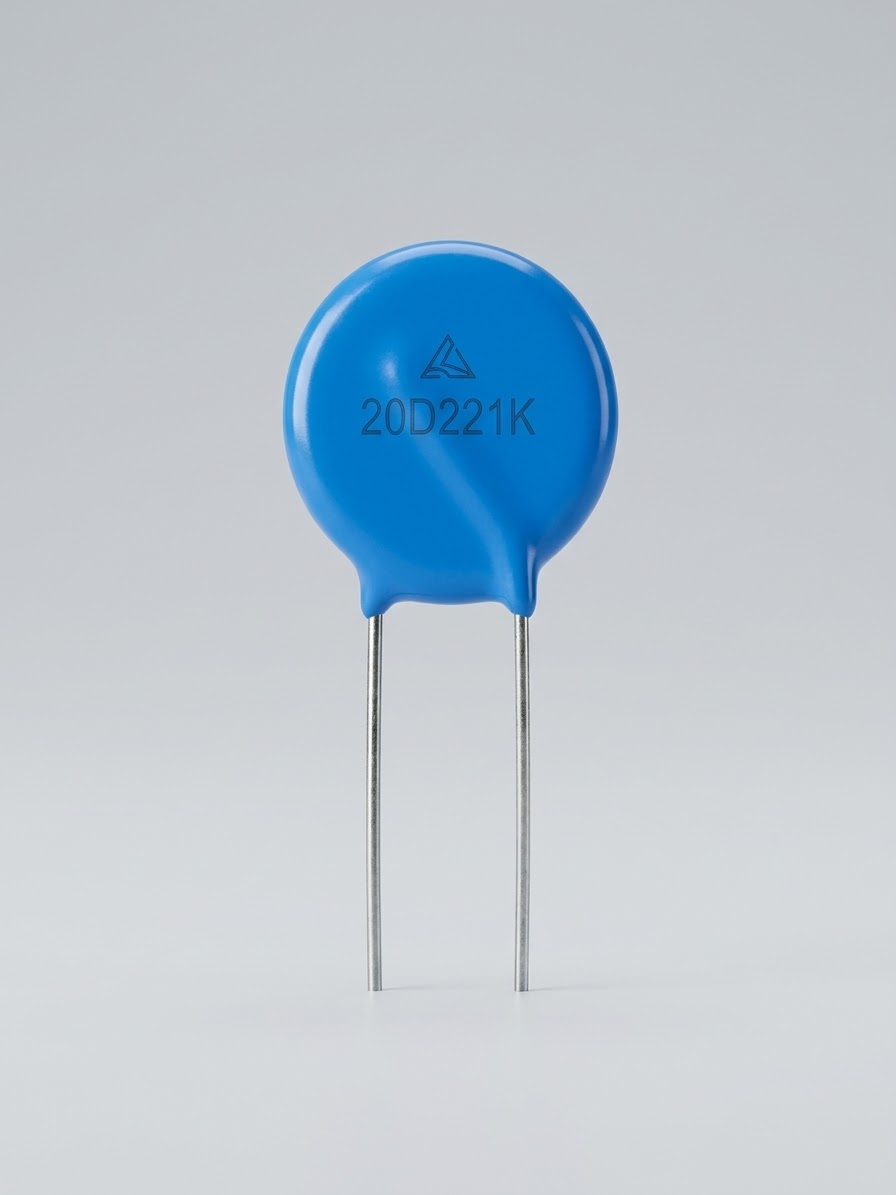

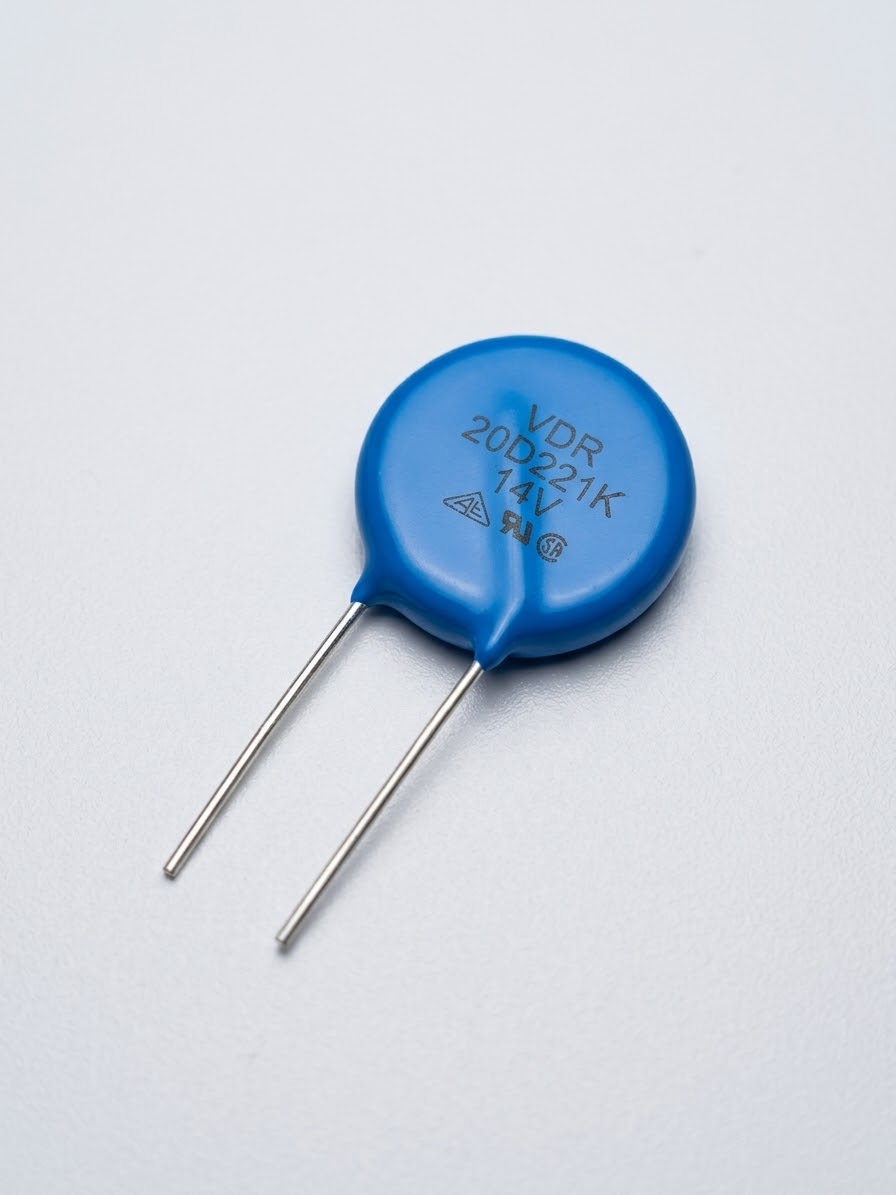

High-Voltage Disc Varistor Surge Protector Components (Blue, Radial Leaded) -

SKU: A33AB950-B12F-4A64-A08B-77B3E549B455

Enhance your circuit protection and safeguard sensitive electronic infrastructure with the 20D221K Metal Oxide Varistor (MOV). Engineered specifically for robust transient voltage suppression, these 20mm radial disc varistors act as critical frontline barriers against harmful voltage spikes, lightning surges, and switching transients in power and industrial systems. Featuring symmetrical bi-directional characteristics, these components rapidly clamp high transient energies to protect microcontrollers, power supply units, and home appliances from catastrophic overvoltage damage. This convenient 20-pack provides ample components for mass production assembly, prototyping, or routine maintenance repairs. Key Features & Technical Specifications Component Type: Metal Oxide Varistor (MOV) / Disc Varistor Model Series: 20D221K (20mm Disc Diameter)Nominal Varistor Voltage ($V_{1mA}$): 220V (Range: 198V – 242V)Maximum Continuous Working Voltage: 140V AC (RMS) / 180V DC Surge Current Handling: High peak surge current capability (up to 6.5kA)Mounting Style: Through-Hole (PCB Mount) with standard 2-pin radial leads Coating: Flame-retardant blue epoxy resin insulation Pack Quantity: 20 Pieces Primary Applications Switch-mode power supplies (SMPS) and AC/DC power adapters Surge protection devices (SPDs) and power strips Industrial automation and control electronics Consumer electronics, appliances, and white goods Telecommunication power distribution boards
