15:15 Welding Machine Drive Card

Name: 15:15 Welding Machine Drive Card | Ven10 Enterprises
Brand: Ven10 Enterprises
SKU: D7D92851-4D7B-4866-AC78-1DFD6DDC0DEA
Price: 369 INR
Availability: InStock
Rating: 4.7 (17 reviews)

SKU: D7D92851-4D7B-4866-AC78-1DFD6DDC0DEA

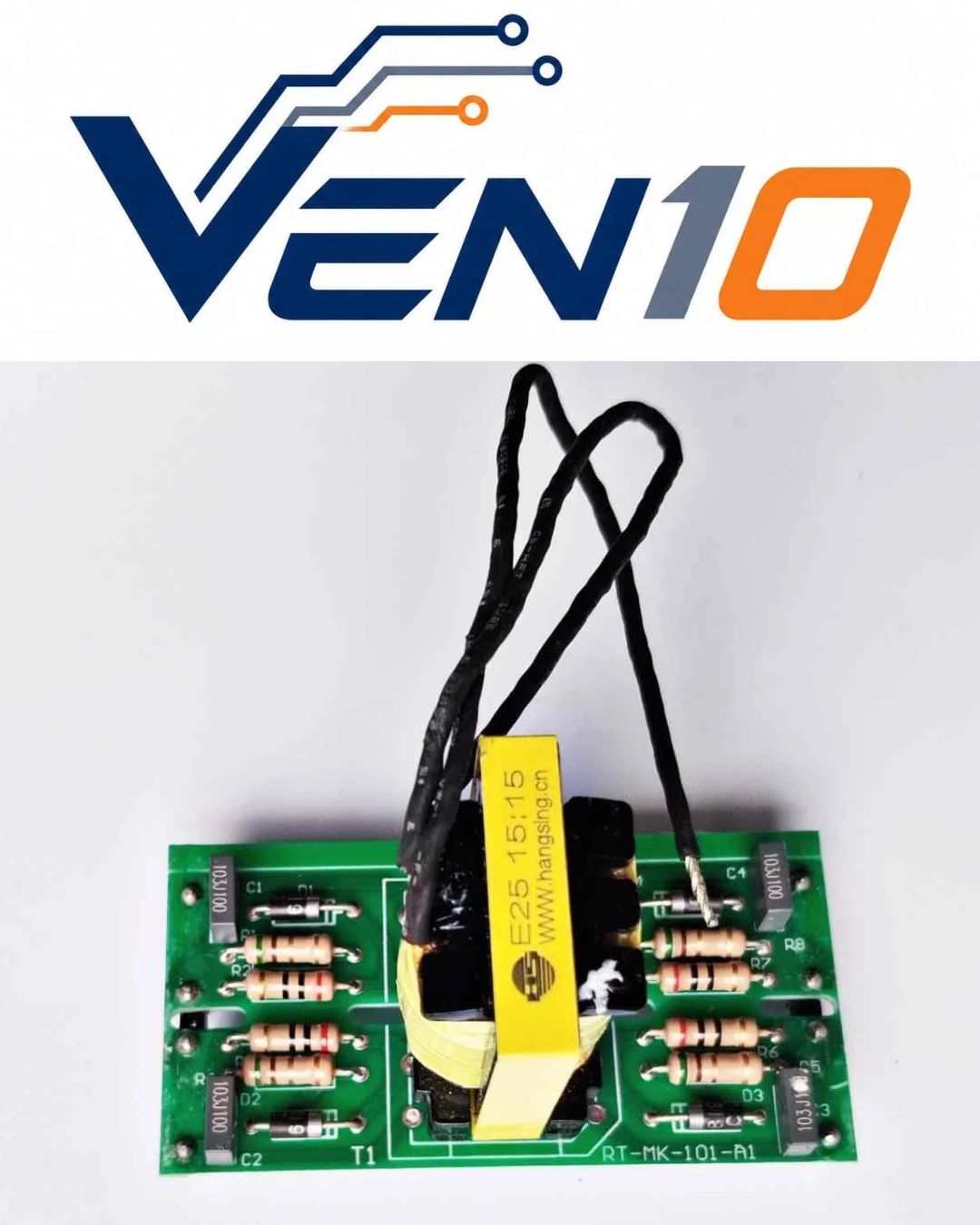

High-performance 15:15 Welding Machine Drive Card (Pulse Transformer Auxiliary Board) specially designed for ARC, MMA, and TIG inverter welding power sources. Key Features & Advantages: - Precision 15:15 pulse ratio ensuring clean gate drive pulse signals. - Protects power switching devices (IGBTs & MOSFETs) from waveform distortion. - Built with high-grade FR-4 PCB material and copper winding pulse transformers. - Fully compatible with ARC 200, ARC 250, and multi-PCB inverter welders. - Factory-tested for high frequency response, thermal stability, and low noise. Common Applications: - Inverter welding machine repairing and PCB maintenance. - Replacement of burnt or damaged pulse driver cards. - Industrial welding machine manufacturing & maintenance.

Performance Highlights

Cycle Life

Industrial Duty Grade

Chemistry

Pulse Transformer / FR4 PCB

Application

Inverter Welding Machine Gate Drive

Unit Price (Excl. Taxes)

₹369

💬 WhatsApp Procurement Inquiry

Technical Specifications

Nominal Voltage15V - 24V DC Auxiliary Supply

ChemistryPulse Transformer / FR4 PCB

Cycle LifeIndustrial Duty Grade

Operating Temperature-10°C to 85°C

Weight0.05 kg (approx)

DimensionsStandard Inverter Drive Card Dimensions

WarrantyTesting warranty against manufacturing defects. Verified for signal integrity before dispatch.

ApplicationsInverter Welding Machine Gate Drive

Brand / QualityVen10 Enterprises

Applications

ARC Inverter Welding Machines
TIG Welders
MMA Power Sources
Industrial Inverter Repair

Documentation

Technical datasheets are available for engineering validation and procurement review.

Request Datasheet

Warranty

Testing warranty against manufacturing defects. Verified for signal integrity before dispatch.
